Peugeot Fractal, an electric urban coupe
07 September 2015

Peugeot Fractal, an electric urban coupe

    Share

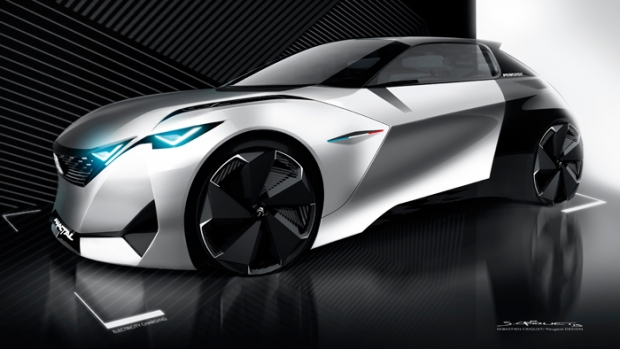

    The Peugeot Fractal negotiates city streets with ease, always in sync with its environment. The car is extremely compact, at 3.81m long and 1.77m wide, allowing it to weave through heavy traffic. The 19” Tall&Narrow wheels are positioned at either end of the car, with an overhang of just 0.52m front and back to maximise space utilisation and improve manoeuvrability.



    The 30kW/h battery powers two 75kW/102hp electric motors, one on each axle, and offers a Combined Drive Cycle potential distance of 280miles.

    The system manages power output according to driving conditions. The 150kW/204hp is distributed based on grip to optimise traction and energy recovery. In addition, to take into account weight transfer considerations, the electric motors have different gear ratios. During acceleration in the 0-62mile range, the rear motor kicks in first, with the front-axle motor gradually taking over beyond 62mph.

    The four-wheel-drive FRACTAL has electric assisted steering to ensure outstanding efficiency in the city and stability at high speed. The air springs can function automatically or be controlled by the driver to adjust ground clearance between 7cm and 11cm: the lowest position optimises aerodynamics on the road and extends the cars’s autonomy; the highest clearance allows the car to negotiate city streets with ease and take speed humps and car park entrances in its stride.

    FRACTAL is an electric urban coupé revealing a prospective design for the PEUGEOT i Cockpit® that explores the sense of hearing in addition to sight and touch. It makes driving even more instinctive, creating an unparalleled on-board experience. The StelLab is a PSA Peugeot Citroën research unit that has designed an innovative ‘9.1.2’ sound system combining a high-quality set-up that features tactile bass systems built into the back of each seat to make driving all the more instinctive, enriching information through the use of acoustics. This additional PEUGEOT i-Cockpit® feature is characterised by the ‘spatialisation’ and ‘dynamisation’ of sound.

    The head-up display features a high-definition holographic screen and a 45-degree polycarbonate strip that delivers additional information and creates an impression of depth. This allows the driver to customise the way information is shown.

    FRACTAL is an ideas incubator that explores new design and manufacturing processes. 3D-printed parts represent more than 80% of the interior trim surface. The anechoic materials were made through generative design - an incremental, stochastic process used to achieve the perfect component.

    The 30kW/h lithium-ion battery powers the electric motors on the front and rear axles to provide a total output of 150kW/204hp and combined-cycle autonomy of up to 450km. Variable ground clearance allows the vehicle to adapt to different types of terrain. The 7cm clearance for motorway driving improves aerodynamics to range and boost battery life. This can be increased to 11cm in urban environments, allowing the car to take speed humps and car park entrances in its stride.
